application:
"We are particularly pleased that now they can get into the club's field without slowing down and not waiting for an open barrier," said Jenna, a UHF reader from UK customers.
"The reader is good to upgrade existing parking equipment to customers, RFID parking systems and software can be easily installed and integrated into any previously created obstacles and doors. Thanks!" Said Mercy of our EU customer distribution UHF reader. "
The main selling point:
Frequency 860 ~ 868MHz, 902 ~ 928MHz frequency band (frequency customization optional)
Antenna 12dbi
The maximum reading distance is 8-15m
Protocols ISO18000-6B, ISO18000-6C (EPC CLASS1 G2)
Transmission mode HSS or fixed frequency transmission
Software #, VB, Delphi demo; C #, Java, VC SDK
Interface RS232, RS485, Wiegand, TCP / IP & Wifi (optioinal).
* The effective distance depends on the label, the reader, and the environment.
other:
Power supply 8-12V
Read Speed One Tag 64-bit ID <6ms
Linear polarization
Indicates buzzer and LED indicators
Working humidity: 20% ~ 95%
The size of 227mm × 227mm × 60mm
Weight: 2.5KG
Delivery time is usually 3-5 working days

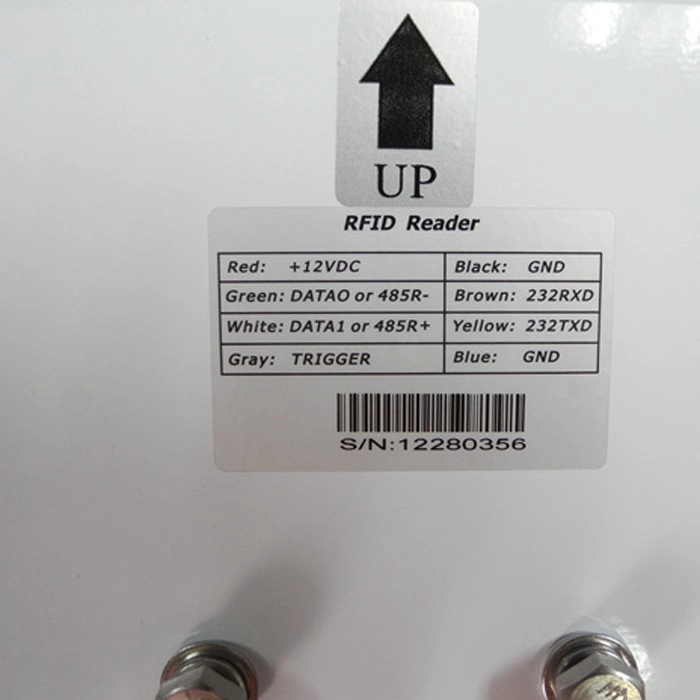

Standard wiring
Red: + 12VDC Black: GND
Green: DATAO or 485R-Brown: 232XD
White: DATA1 or 485R + Yellow: 232TXD
Gray: Trigger blue: GND
The uff card reader module is connected to the controller
Uff rfid reader module prices include:
Uff rfid reader module on-site installation price
Uff card reader module price read other UHF card
Please contact us for more types.
