125Khz card door access control system with software management and SDK PY-SCR100

125Khz card door access control system with software management and SDK PY-SCR100

  • Card Holders: 30,000 cards
  • Transaction Capacity: 50,000 events
  • Reading Time (Card):<30mS
  • Communication: RS232/484,TCP/IP
  • Power/Current: DC12V/ Max.3 A
125Khz card door access control system with software management and SDK PY-SCR100

Introdction:
SCR100 is an access control devices produced by HF&CCTV, which is made with elegant design and professional surface treatment. The device have lock control, alarm, exit button, door sensor. The wiegand-in interface is used to connect external reader to construct master and slave system. Also the device can be used to connect with a control panel as a reader by wiegand-out interface. The operation can be done on PC software and upload to the device through TCP/IP, RS232/485 communication. The USB-host is used for data download and upload, including user data and record etc. SCR100 is suitable for house, small office and factory etc.

Fetures:

1. Elegant design with Acrylic plastic
2. Revolutionary products in industry with TCP/IP interface, avoid RS485 communication and low speed for transferring data, standalone or network deployment
3. Protect the data with encrypted technology

4. Professional access control function: 50 time zones, 5 groups, 10 open door combination, support multi users entry
5. Built-in relay contacts lock, alarm, door sensor & exit button .
6. Wiegand input&output enable Master/Slaver access control .
7. Embedded webserver: support browser to inquire access data at local or remote .
8. No LCD and no keypad enhance the functions of waterproof

9. Professional access control software for management.



Specifications:

ID card Capacity

30000

Transaction Capacity

50000

Communication

TCP/IP, RS232/485, USB-Host

Access Control Interface for

3rd party electric lock, door sensor, exit button, alarm, Door Bell

Wiegand Signal

Output&Input

Standard Functions

Anti-passback, Webserver, 9 digital number

Optional Functions

Proximity

Display

N/A

Power Supply

12V DC

Operating Temperature

0 °C- 45 °C

Operating Humidity

20%-80%

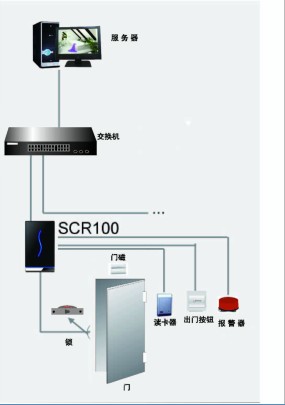

Wiring diagram:
