4 wire Villa Type 7inch Video Door Phone System Unlocking Monitoring Intercom PY-V801ME11
- Product Name: Video Door Phone
- Model: PY-V801ME11
- Monitor: 7inch color screen
- Camera: CMOS
- Power Supply: AC 100V - 240V

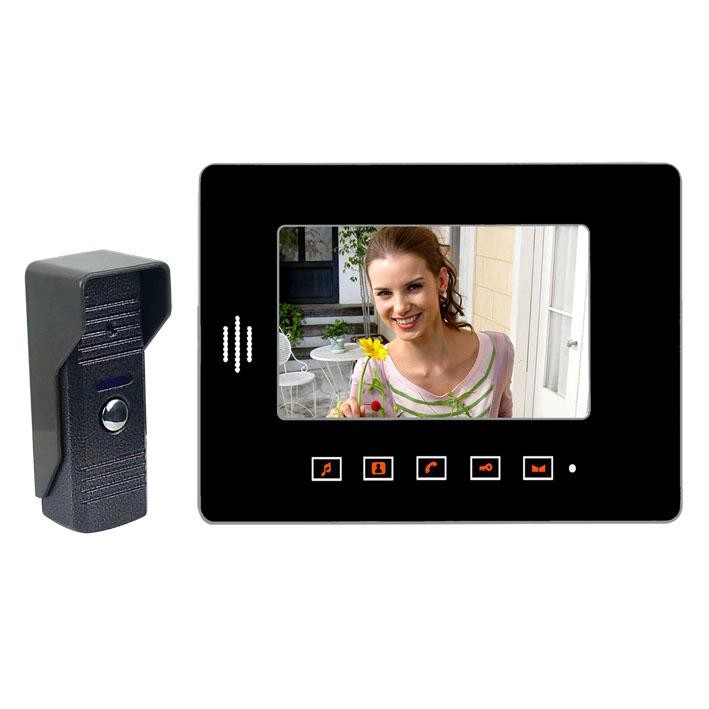

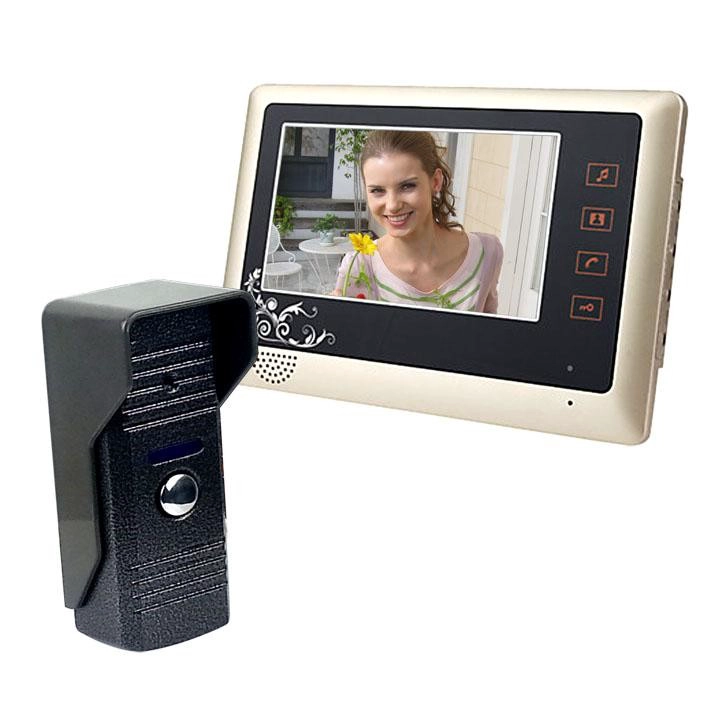

4 wire Villa Type 7inch Video Door Phone System Unlocking Monitoring Intercom PY-V801ME11
Aluminum alloy panel of indoor unit, fashionable and luxury.
Little rain and oxidation-proof for the durable aluminum alloy outdoor unit.
7" color TFT LCD without radiation, low power consumption and high definition.
IR Camera with Night Vision.
Electric lock-control function.
Handsfree intercom.
Mute indoor intercom function.
Monitoring the outside of the door.
12 kinds of door bell rings.
Volume, brightness and contrast adjustable.
Easy installation by yourself with adapter and cable we provide in this kit.
Technical Prameters:
Outdoor Camera
1.Camera: 1/4" CMOS
2.Min. Illumination: 0.5Lux
3.Video output: 1Vp-p/75Ω
4.Adapter input: AC100~240V, 50/60Hz
5.Adapter output: DC15V/1.2A
6.Installation: Wall mounted
7.Material: ABS plastic & aluminum alloy
8.Wires for Lock-camera connection.
9. Working Temperature: -20°C to 50°C
Indoor Monitor
1.Screen: 7" TFT/LCD
2.Power source: AC100V-240V / 50-60Hz
3.Effective pixels: 480 * 234 * 30
4.Power: ≤14W (operation), ≤2W (standby)
5.Wiring: 4 wires
Outdoor Camera
1.Camera: 1/4" CMOS
2.Min. Illumination: 0.5Lux
3.Video output: 1Vp-p/75Ω
4.Adapter input: AC100~240V, 50/60Hz
5.Adapter output: DC15V/1.2A
6.Installation: Wall mounted
7.Material: ABS plastic & aluminum alloy
8.Wires for Lock-camera connection.
9. Working Temperature: -20°C to 50°C
Indoor Monitor
1.Screen: 7" TFT/LCD
2.Power source: AC100V-240V / 50-60Hz
3.Effective pixels: 480 * 234 * 30
4.Power: ≤14W (operation), ≤2W (standby)
5.Wiring: 4 wires
Package includes:
1 * Outdoor Unit (Camera)
1 * Indoor Unit (Monitor)
1 * DC15V Adapter
1 * 5m 4-core Connection Cable
1 * 2-core Connection Cable
1 * User Manual
1 * Outdoor Unit (Camera)
1 * Indoor Unit (Monitor)
1 * DC15V Adapter
1 * 5m 4-core Connection Cable
1 * 2-core Connection Cable
1 * User Manual
