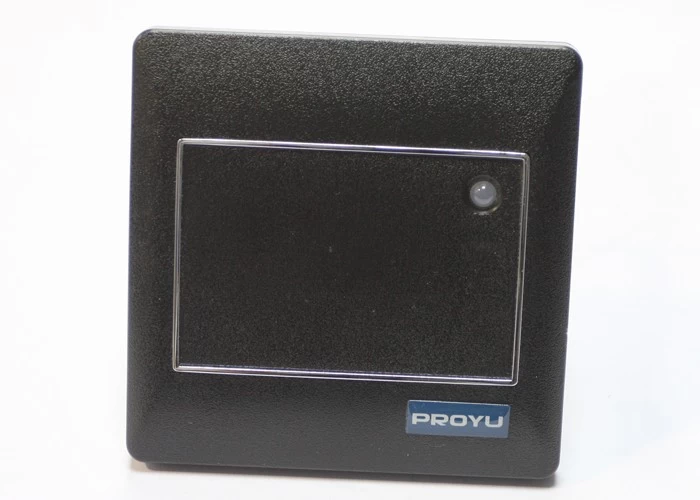

Access Control RFID Card Reader PY-CR33Access Control RFID Card Reader PY-CR33

Access Control RFID Card Reader PY-CR33

  • Wiegand 26bits/ Wiegand34bits
  • 2-5cm Proximity Range
  • 125KHz Proximity / MIFARE® Card
  • Performance:Full sealed for weather proof
  • Stadard 86 Wall Socket Design easy Installation
  • Dimension:86*86*10(mm)

Access Control RFID Card Reader PY-CR33



Feature

• Read Range: Up to 10CM(125KHz)/5CM( MIFARE®)
• 26/34bit Wiegand (default)
• External LED Control
• External Buzzer Control
• Indoor / Outdoor Operation
• Solid Epoxy Potted
• Waterproof IP65
• Reverse Polarity Protection



Specification:

Model EM MIFARE®
Read Range Up to 10CM Up to 5CM
Reading Time (Card) ≤300ms
Power / Current DC 6-14V / Max.70mA
Input Port 2ea (External LED Control, External Buzzer Control)
Output Format 26bit Wiegand (default) 34bit Wiegand (default)
LED Indicator 2 Color LED Indicators(Red and Green)
Beeper Yes
Operating Temperature -20° to +65°C
Operating Humidity 10% to 90% relative humidity non-condensing
Color Black
Material ABS+PC with texture
Dimension
(W x H x T)mm
86*86*10
Weight 110g
Index of Protection IP65

Wire Connection
Red           DC 5V-16V
Black        GND
Blue          D1
White        D0
Brown        BEEP
Green        LED
Yellow       Alarm
