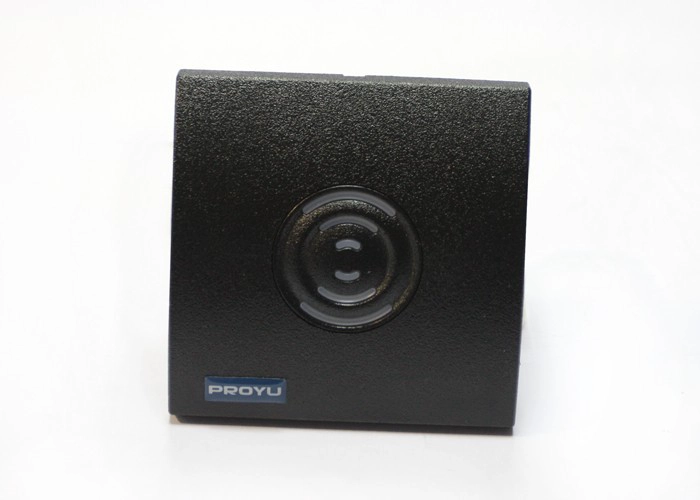

Access control RFID Card Reader PY-CR29
- Color: Black
- Working Volt: DC 5~16V
- Working Current:Max.70mA
- Waterproof IP65
- 2 Color LED Indicators(Red and Green)
- Material: ABS+PC with texture
- Weight: 110g
- Size: 86*86*16.8（mm)
Access control RFID Card Reader PY-CR29
Feature
• 125KHz Proximity / MIFARE® Card Reader
• Read Range: Up to 10CM(125KHz)/5CM
• 26/34bit Wiegand (default)
• External LED Control
• External Buzzer Control
• Indoor / Outdoor Operation
• Solid Epoxy Potted
• Waterproof IP65
• Reverse Polarity Protection
Specification:
| Model | EM | MIFARE® |
| Read Range | Up to 10CM | Up to 5CM |
| Reading Time (Card) | ≤300ms | |
| Power / Current | DC 6-14V / Max.70mA | |
| Input Port | 2ea (External LED Control, External Buzzer Control) | |
| Output Format | 26bit Wiegand (default) | 34bit Wiegand (default) |
| LED Indicator | 2 Color LED Indicators(Red and Green) | |
| Beeper | Yes | |
| Operating Temperature | -20° to +65°C | |
| Operating Humidity | 10% to 90% relative humidity non-condensing | |
| Color | Black | |
| Material | ABS+PC with texture | |
| Dimension (W x H x T)mm |
86*86*16.8 | |
| Weight | 110g | |
| Index of Protection | IP65 | |

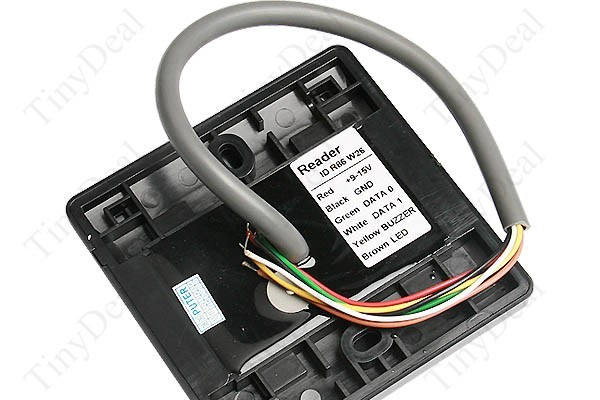

Wire Connection
Red DC 5V-16V
Black GND
Blue D1
White D0
Brown BEEP
Green LED
Yellow Alarm
