Home > Products > Access Control System Price > Access controller for rfid acc.....
Access controller for rfid access control systemAccess controller for rfid access control systemAccess controller for rfid access control system

Access controller for rfid access control system

  • IE Web Browser TCP/IP wiegand card access control board
  • Communication TCP/IP, IE Browser
  • Controlled Readers( in and out) 4PCS
  • Controlled door relay: 1
  • English Software supportable database: SQL
  • Door opening time extending setting 1-600 Seconds(adjustable)
  • Max q ' ty of controller Unlimited
  • Power Supply 12VDC; 4-7A
  • Power Consumption of Circuit Board Less than 100mA
IE Web Browser TCP/IP wiegand card access control board

  1. Communication TCP/IP, IE Browser
  2. Controlled Readers( in and out) 2PCS
  3. Controlled door relay: 1
  4. English Software supportable database: SQL
  5. Door opening time extending setting 1-600 Seconds(adjustable)
  6. Max q ' ty of controller Unlimited
  7. Power Supply 12VDC; 4-7A
  8. Power Consumption of Circuit Board Less than 100mA
  9. Input Format of Reader Wiegand 26/34 bit (All card reader with compatible protocol,such as EM, IC etc,
  10. Operation Humidity 10-90 % RH ,No Condensation
  11. Q ' ty of users 20,000 Users
  12. Q ' ty of Event Buffers(offline)  100,000 Event Buffers
  13. Max distance between controller to the PC: No limits
  14. Max distance for the bus line: Depends on Network
  15. Max distance(Reader to controller) 100 meters, suggest within 80 meters
  16. Max q ' ty of controller Unlimited
  17. The card reader, door sensor and button line: Network lines
  18. Controller relationships Each  works independently and keeps its own database
  19. Alarm input programmable
  20. Software English
  21. SDK Available
  22. PCB board size: 160mm * 106mm
  23. Case Size: 273mm * 228mm * 65mm



Access  management functional schedule:

  1. Compulsive open and close door at long time √
  2. Open door in remote distance √
  3. Inter block                    ×
  4. (only work for 2door and 4 door)
  5. Anti pass back and tail √
  6. Multi-card open door √
  7. Open long time at specified time √
  8. Electronic map √
  9. Urgency locking √
  10. First card unlocking √
  11. Unlock based on internal and external validation √
  12. Keypad (card+passwor, supper password) √

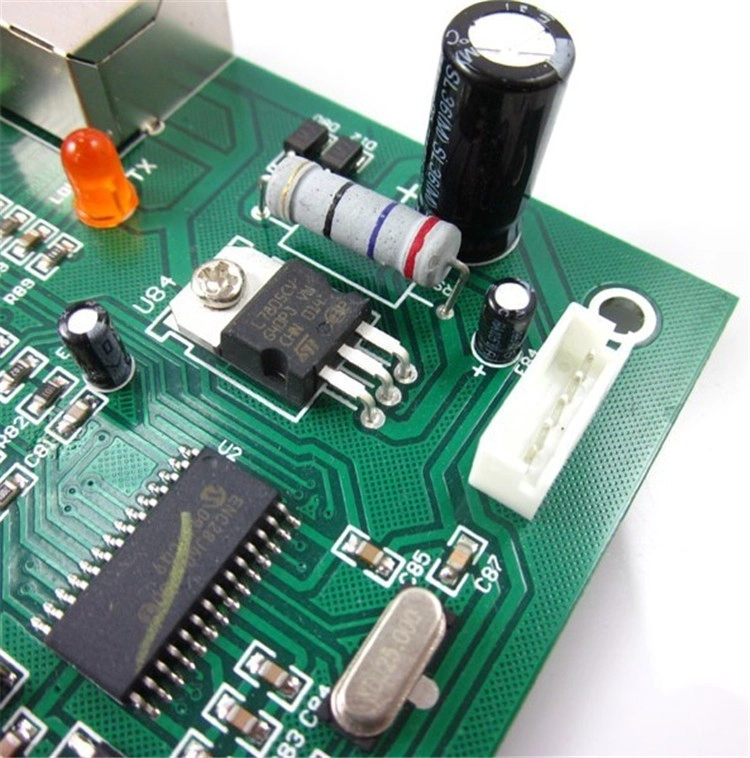

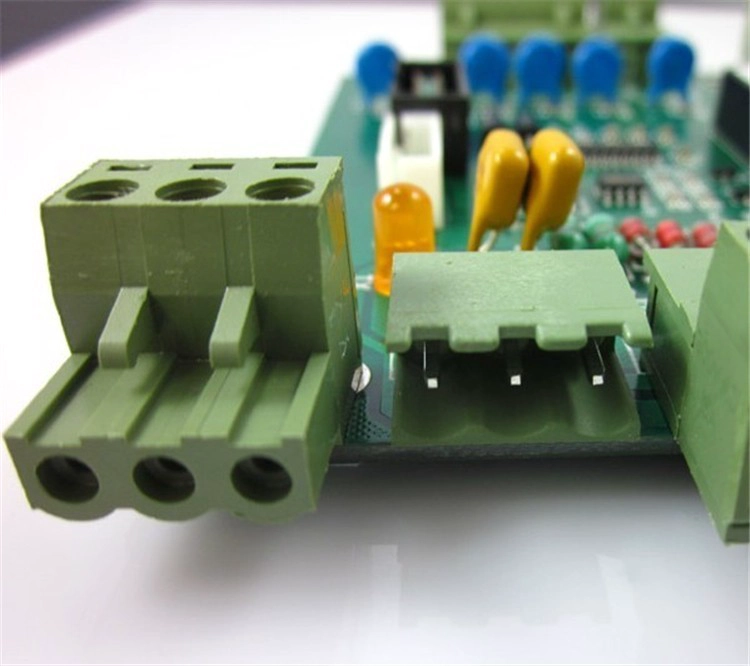

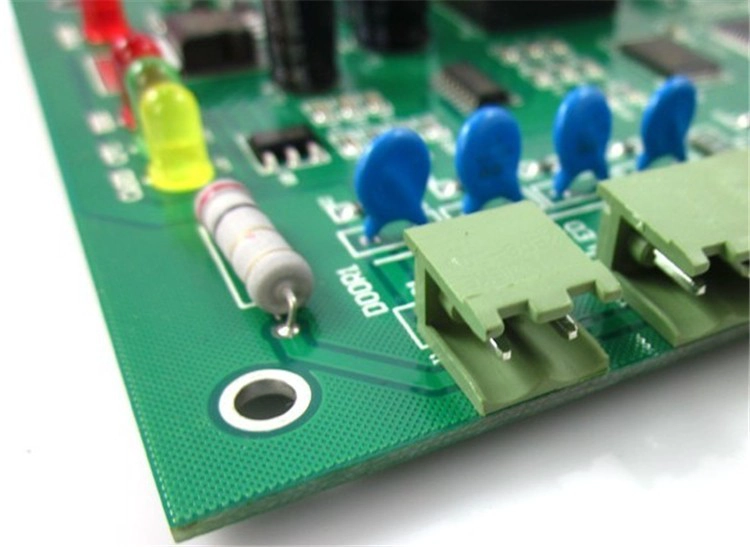

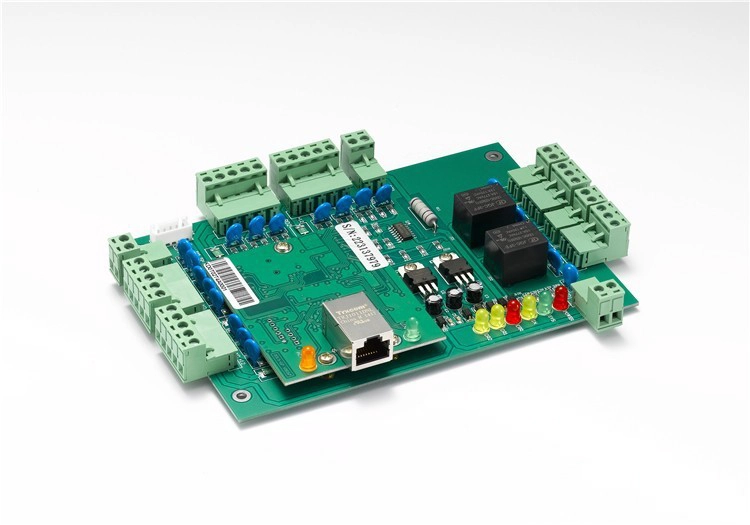

rfid access control system detail picture shoot in kind


serial  rfid access control system
