China Hotel Door Locking for Hotel or Office Used PY-8011-4YChina Hotel Door Locking for Hotel or Office Used PY-8011-4Y

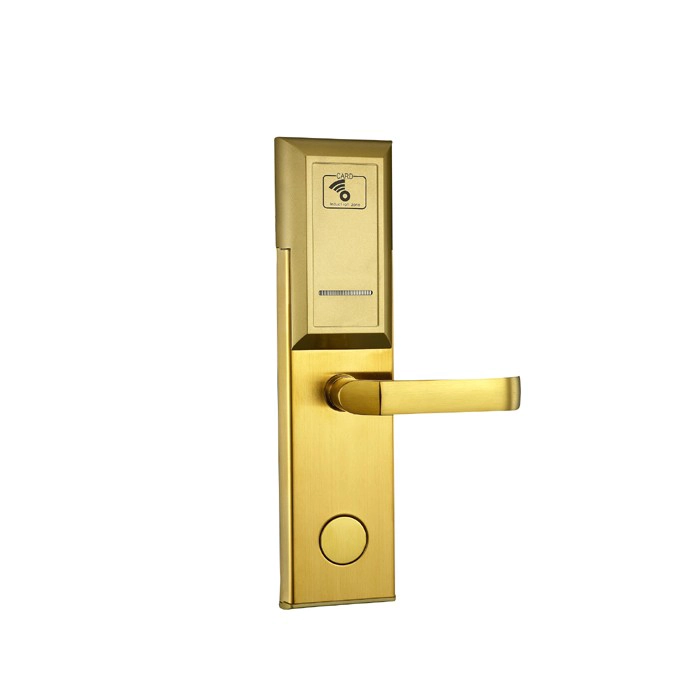

China Hotel Door Locking for Hotel or Office Used PY-8011-4Y

  • 1.Inductive distance ≤ 5cm
  • 2.Power Supply: DC 6V , 4pcs of AA alkaline batteries
  • 3.static current:15 μA
  • 4.card reading current:≤20 mA

RF hotel door lock including:


A: MIFARE® card for hotel lock, ( use with USB port card encoder and software)

B: Temic card hotel lock, ( use with USB port card encoder and software)

C: EM hotel lock, (use standalone, no need software)

Main Features of our hotel door lock


1. It is forged by Zink alloy(stainless steel or copper) once, with high security and solidity nature.

2. Intellectual ultra thin little core of lock, This makes the breakage to the door as little as possible when making holes.

3. Free handle, to prevent the external stress from ruining the internal structure. The working life is long.

4. We test every circuit board to ensure its life span.

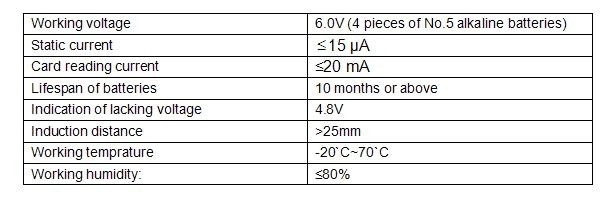

Technical Parameters:

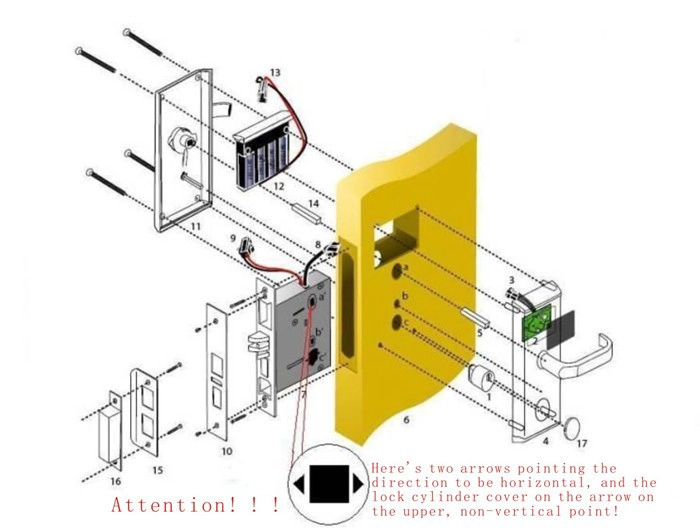

How to Install Our China Hotel Door Locking

The Certificate of Our Product

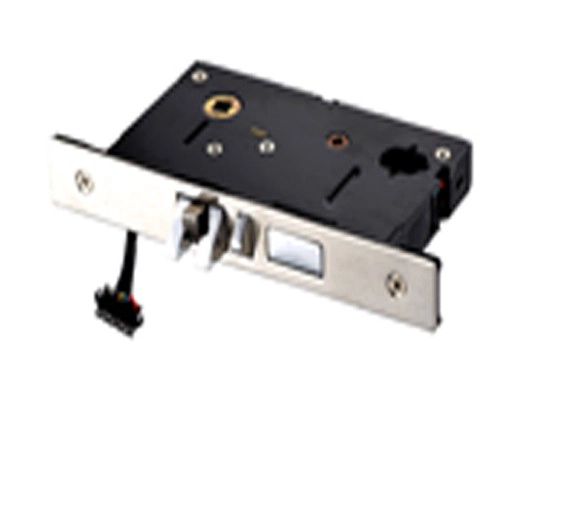

Some Other Pictures of Our China Hotel Door Locking

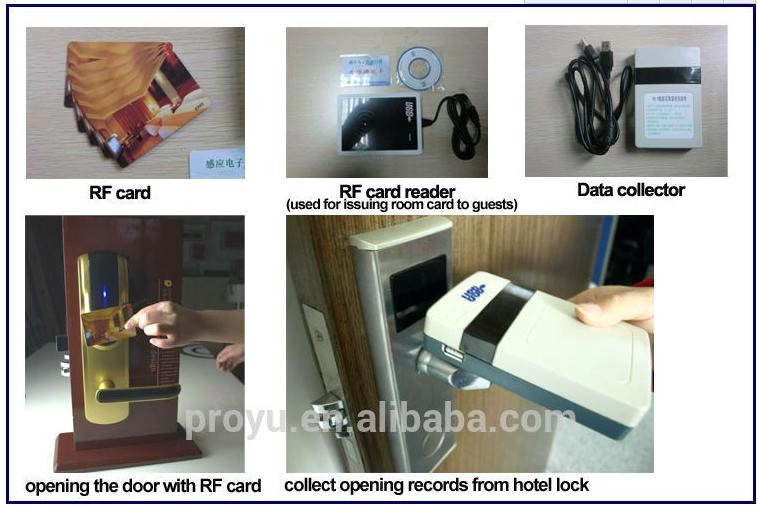

Lock and software working steps


-  Computer(to install the software), card encoder, cards,locks are the base one.Also, you could the Energy saving switch, data collector to the you can see the attach photo.



-  The software will be supplied to you in FREE.



-  With the help of software, you will finish setting up the hotel lock easily..and in the reception of hotel, the hotel staff will make the room card for guest.



-  Then the guest get the room card and walk to the right room, swipe the card to the lock for unlocking, then insert the card to Energy saving switch to get the power if required.



- As a manager, you can get the daily/monthly/yearly report with the software.



- Also, the data collector will help you to get the preserve records from lock and read them on PC.
