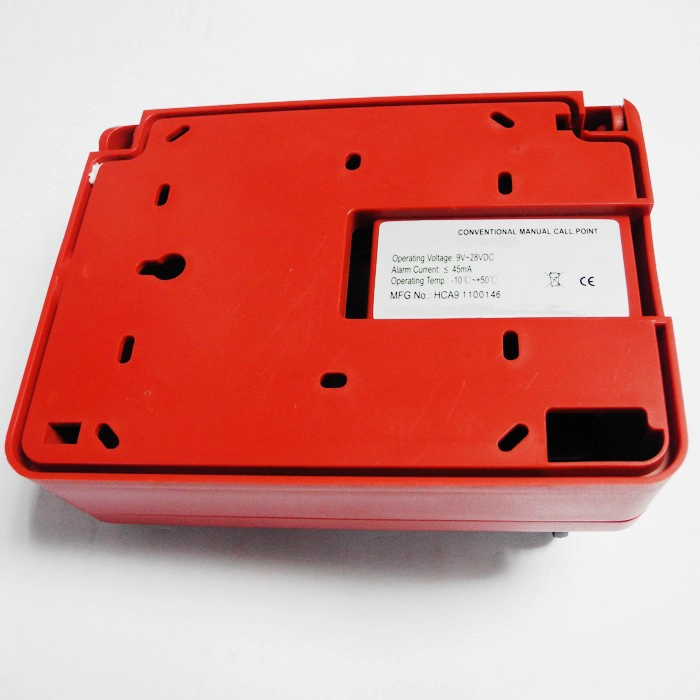

Conventional break glass manual call point for fire alarm PY-SB116

Conventional break glass manual call point for fire alarm PY-SB116

  • Available for flush or surface mounting
  • Plastic film on glass
  • Test key inserted from side
  • Open circuit with series resistor
  • Suitable for the majority of conventional fire alarm systems

Conventional break glass manual call point for fire alarm

SPECIFICATIONS

Place of Origin

 Guangdong, China (Mainland)

Brand Name

 PROYU

Model Number

 PY-SB116

Usage

 Personal

Operating Voltage Range

 24 VDC Volts

Alarm Current

 10 to 30 mA @ 24 VDC

Operating Humidity Range

 10% to 93% Relative Humidity, Non-condensing

Operating Temperature Range

 -10°C to 50°C (14°F to 122°F)

Input terminal Wire Gauge

 12 to 18 AWG




BEFORE INSTALLING

NOTICE: This manual should be left with the owner/user of this equipment.



GENERAL DESCRIPTION

The conventional manual call point designed for conventional fire alarm system for reporting fire or emergency condition by pressing its breakable glass. The manual call point can be test by a test key without breaking the glass.

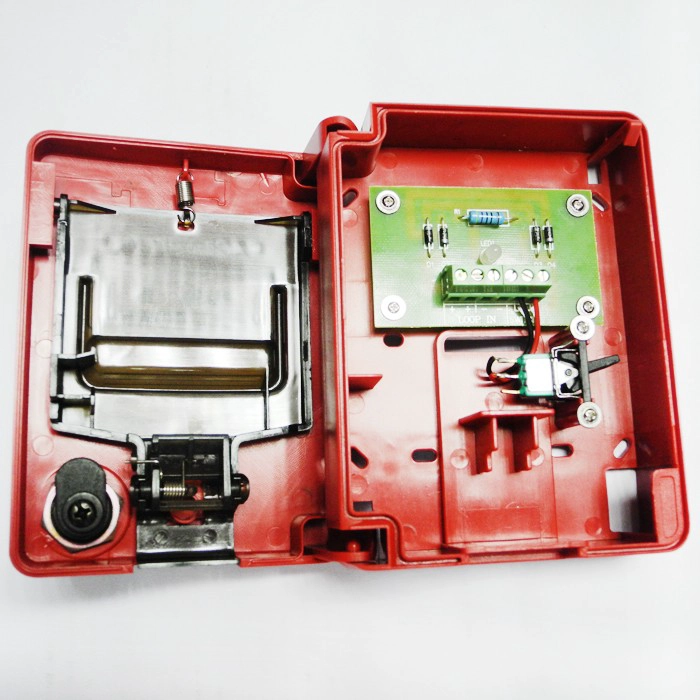

Loop Design and Wiring

The fire alarm control panel Zone wire can be connected to terminal 2(+),4(-).

And there is a 5.1V Zener diode should be connected to terminal 1A and 4A.(included by default).

If the manual call point is in the end of the zone wire, a 5.6K resistance should be connected to terminal 2, 4.
