Home > Products > Door Lock System > Fingerprint Door Lock > High security Magnetic lock ma.....
High security Magnetic lock manufacturer, Finger & ID card time attendance companyHigh security Magnetic lock manufacturer, Finger & ID card time attendance companyHigh security Magnetic lock manufacturer, Finger & ID card time attendance company

High security Magnetic lock manufacturer, Finger & ID card time attendance company

  • Four unlocking modes: fingerprint, MIFARE® card, mechanical key, remote control key(optional).
  • Suitable for wooden door and iron gate
  • Capacity: 120 fingerprints and 120 cards
  • Lock body made of pure steel provides the highest strength in the inductry

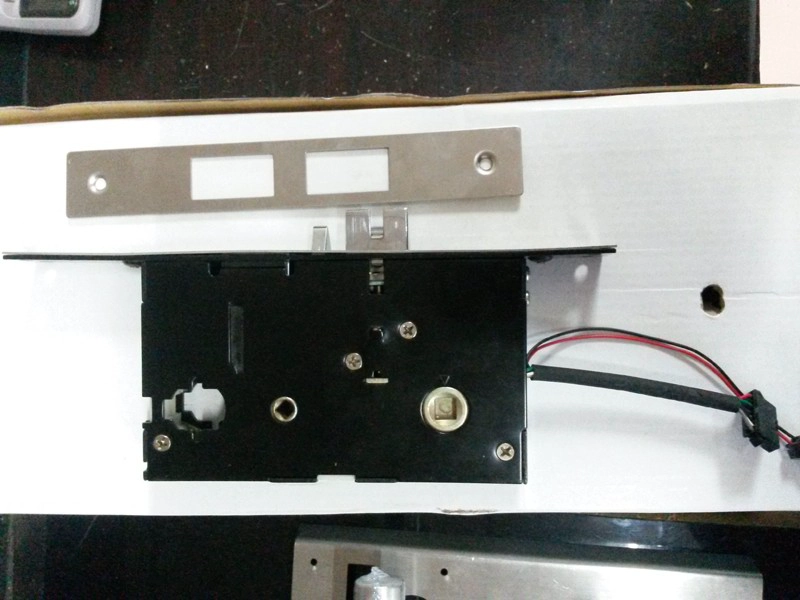

  • Standard locking mechanism with multi-point deadbolts
  • Reversible handle with vogue design can be lifted for bank-locking
  • Novel and independent modularized clutch
  • Surface treated with 308UV
  • Low voltage alarm (less than 4.8V)
  • Emergency power supply can be used if the battery runs out

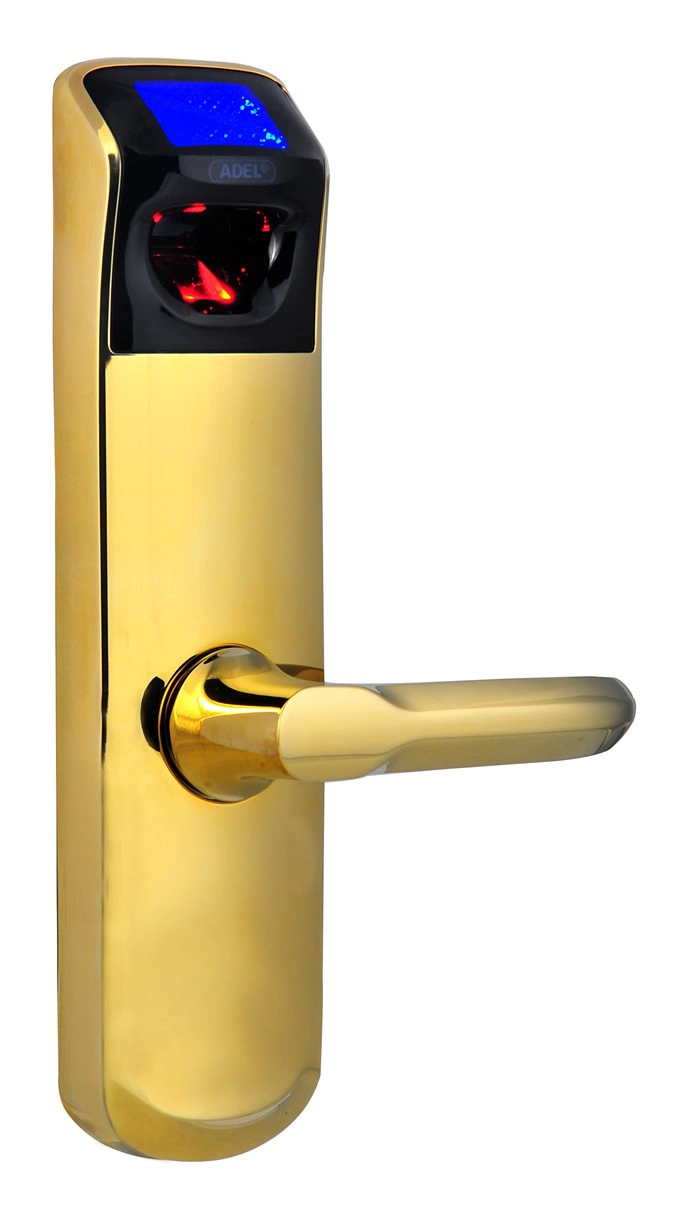

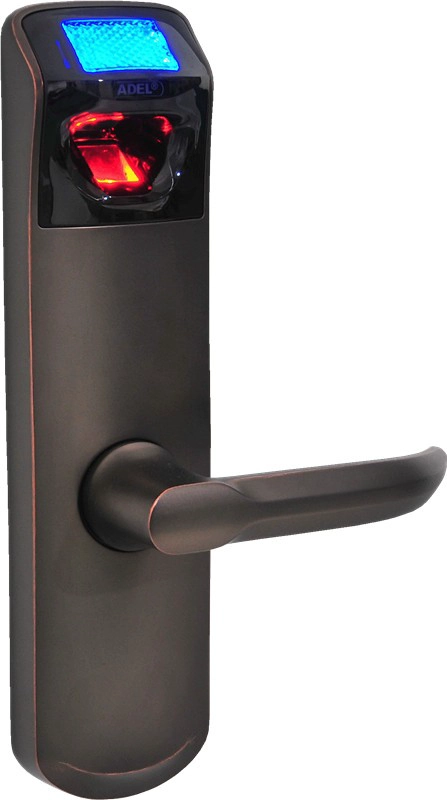

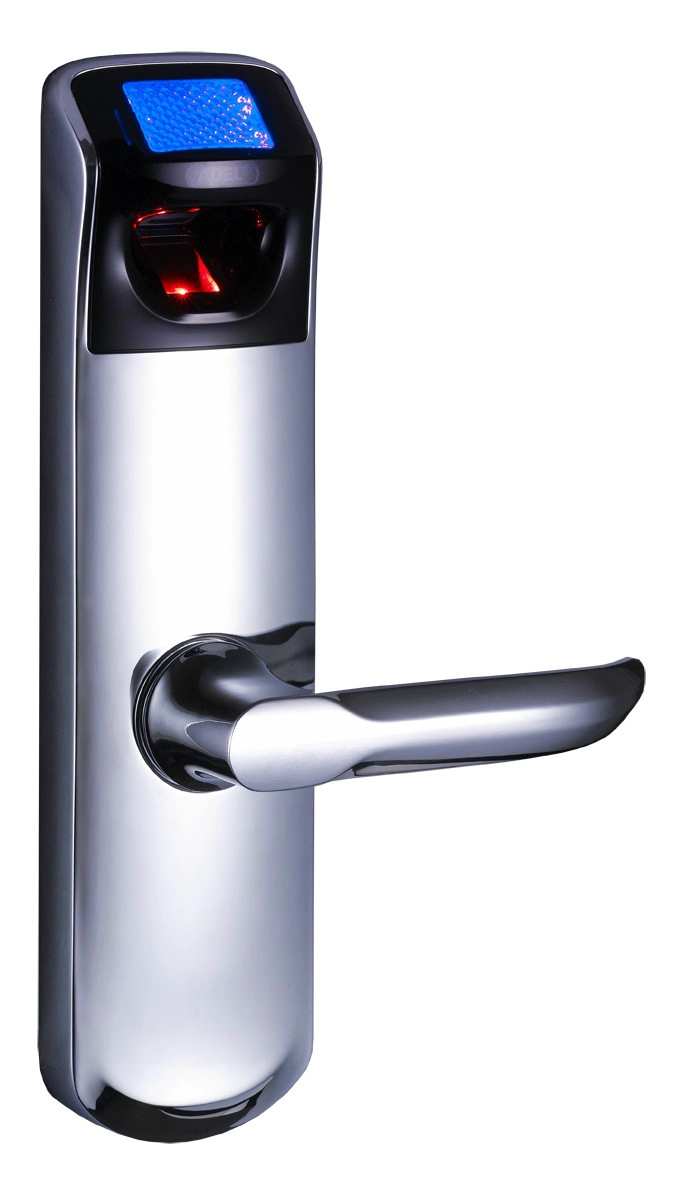

High security biometric fingerprint door lock for home/office PY-U3-6

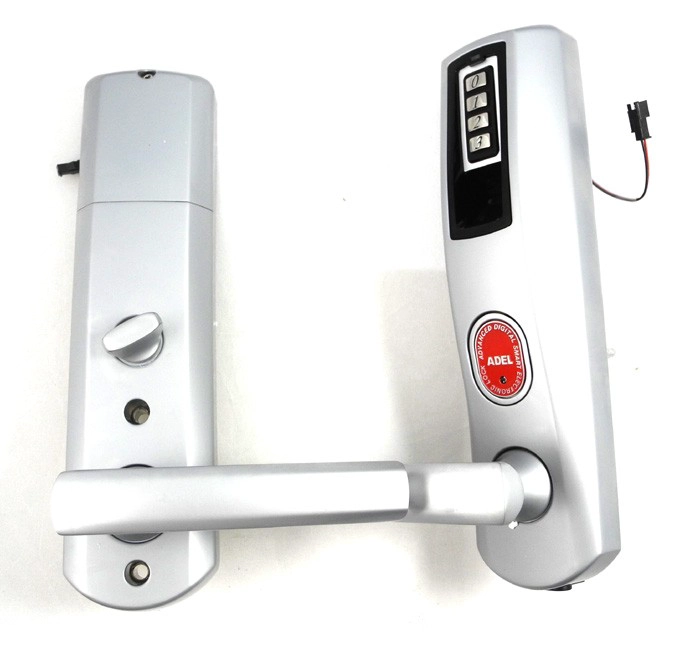

High security Magnetic lock manufacturer, Finger & ID card time attendance company, Password & ID card access control company

Features:
Four unlocking modes: Fingerprint,MIFARE® card, mechanical Key, remote control key(optional)
Suitable for wooden door and iron gate
Capacity:120 fingerprint and 120 cards
Lock body made of pure stool provides the highest strength in the industry.
Standard locking mechanism with multi-point deadbolts
Reversible handle with vogue design can be lifted for back-locking
Novel and independent modularized clutch
Surface steated with 3080UV
Low voltage alarm(less than 4.8V)
Emergency power supply can be used if the battery runs out


Technical parameters:

Item PY-U3-6
Fingerprint sensor 0.3mega pixel, color CMOS
Sensor resolution 500 DPI
Destruction resistance of sensor surface Remain good condition after being jabbed 1000 times with a 4H pencil at a 20cm’s distance
Verification time < 1 second
Verification method 1:N
FRR ≤1%
FAR ≤0.0001%
Angle for finger position Any angle
Fingerprint enrolling method Press finger twice to create one fingerprint template
Fingerprint refresh method Fully automatic
Fingerprint template saving All enrolled fingerprint templates will be saved automatically
Memory capacity Max. 120 fingerprints
Static consumption

<20UA (initialization)

<120UA (card enrollment)

<220UA  (card enrollment and remote control)

Dynamic consumption <200mA
Operating voltage 4 AA alkaline batteries, DC 6V
Battery life Approximate 10, 000 times
Power supply 4 AA alkaline batteries/6V~9Vexternal power supply
Storage temperature   -10°C~55°C
Low voltage alarm   <4.5V

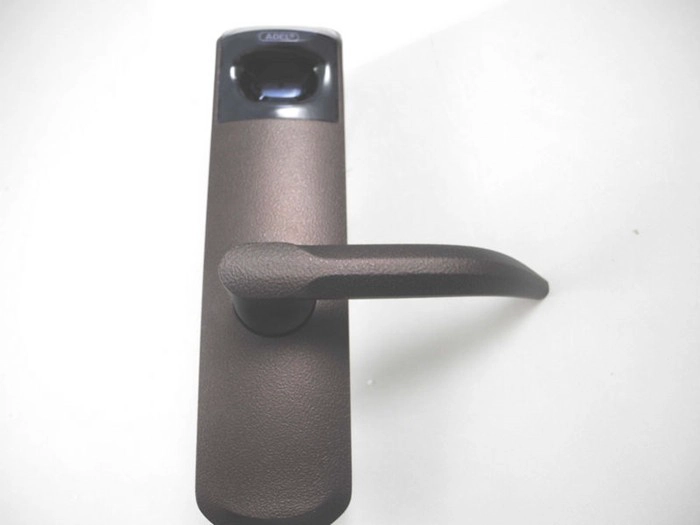

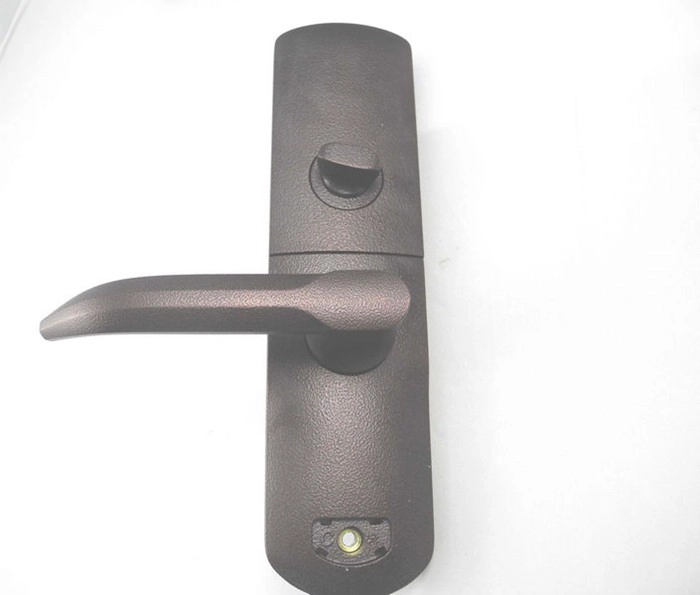

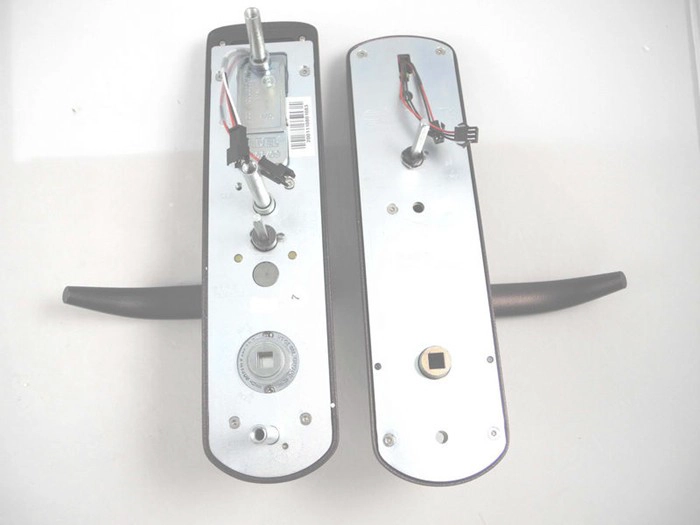

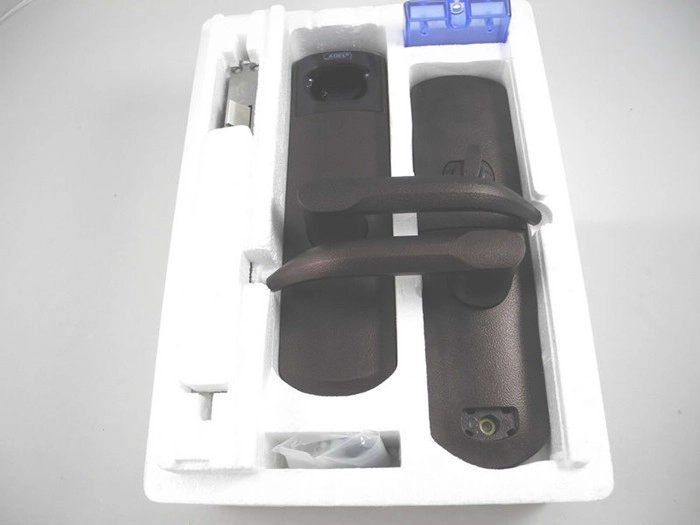

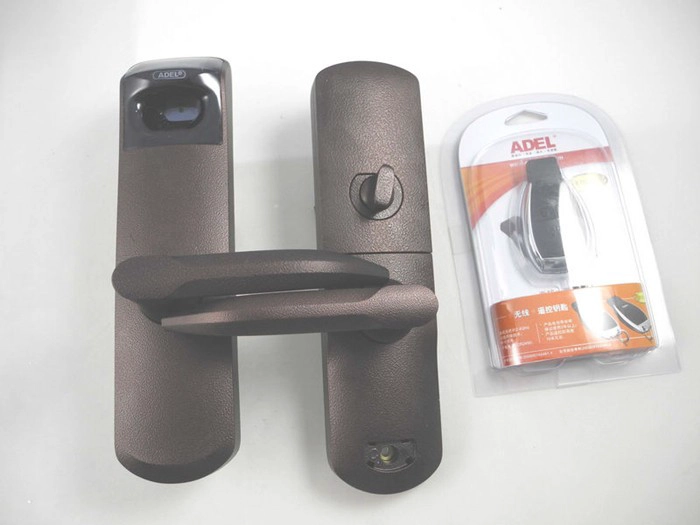

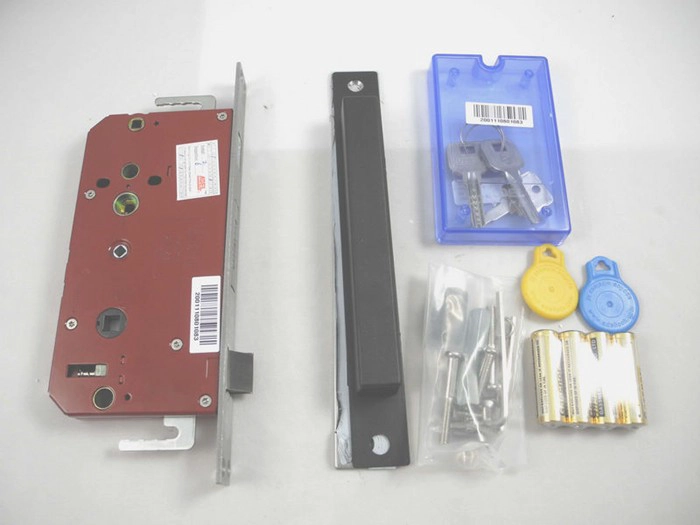

Picture Shows:
