Magnetic contact, door contact, magnetic switch, sensor door, switch sensor, window contact PY-C40Magnetic contact, door contact, magnetic switch, sensor door, switch sensor, window contact PY-C40

Magnetic contact, door contact, magnetic switch, sensor door, switch sensor, window contact PY-C40

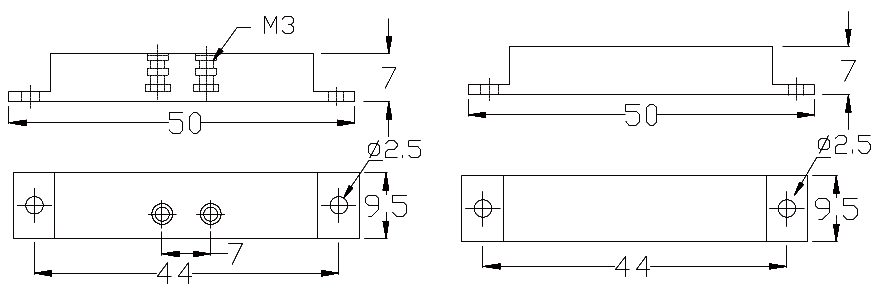

  • * Dimension: 44*10*7mm
  • * Housing: ABS ,white /brown
  • * Gap: 15-25mm/20-25availble
  • * Output: N.C./N.O. & Changeover available
  • * Inner packing: 10sets/PE
  • * Outer packing: 1600 sets/carton
  • * Gross Weight: 16.0KG
  • * Remarks: 4 screws including, with double-sided tapes sticked on the bottom, 3M brand available


1. Specification



surface mounted magnetic switch

Ideal for wooden door/ window



1. Housing: ABS material ; fireproof ABS housing is available on request

2.Color :white/brown

3.Gap: 15-25mm

4.Certificates:FCC,CE ,ROHS

5.Screw down or super adhesive, slim stype and intaller easy




2. Order information



Specification Output Casing Material Action Gap(mm) Max CUr./Vol./Power/Init.Ress(A/VDC/W/mΩ) MOQ(PCS)
NC-ABS-1525 NC ABS 15-25 0.5A/100V/10W/200mΩ -
NO-ABS-1525 NO ABS 15-25 0.25A/30V/3W/200mΩ -
