How to use the Hotel Elevator controller?

  • Author:Liana Cao
  • Release on :2016-04-08
How to use the Hotel Elevator controller?

Here is our Hotel Elevator system


1. See the picture, connect the 5V power supply to the red and white power line.

2 terminals(1pc 2P and 1pc 4P) are together. 4P is to connect the card reader, 2P is to connect the

power supply.

The another 4P terminal on the other side is to connect the next elevator controller.

2. From the socket of corresponding floor on the controller, cite two lines to the corresponding floors elevator button.

(total have 8pcs 2P socket on the elevator controller, see followed picture. A

nd it also shows 1-8 floors position.)


The method of usage: First swipe system card on the card reader 1 time,

then swipe the room number setting card of the starting floor, then the guest cards can only to the corresponding floor.

(the first picture is wiring diagram of setting the first floor as the starting floor)

Att: Master cards can go to all the floor.

Followed is how to issue the Room Number Setting Card:

(1) Go to ,issue "Room No. Setting Card"

for any room of corresponding floor.

 Please see followed picture: I choose floor 1 Room 102,

you can also choose Room 103 or 104....  For which floor, choose the corresponding floor, but the

floor’s room is random.


Attention: After the control unit is powered,

the relays are all off and the light of the control unit are all bright.

After power off, the relays conduction(power failure or the damage of the mainboard cause power

failure, the elevator will recover the normal working condition.).

 After swipe cards to judge the corresponding floor,

the relays close and the corresponding light of the control unit go out.

 Conducting the elevator indicator lights can be pressed on.

Cascading 8pcs control board at most, when level control, the first block dont need short circuit,

the second short circuit S0, the third short circuit S1.... Total is 8*8=64 floors.



For example: to control 3-10 floor

swipe the system card 1 time first, then swipe the 3 floor’s “Room Number Setting Card”

3-10 floor connect 1-8 floor’s corresponding position as in the picture,

Specific information as follows:

the 3 floor connect 1 floor’s position

the 4 floor connect 2 floor’s position

the 5 floor connect 3 floor’s position

the 6 floor connect 4 floor’s position

the 7 floor connect 5 floor’s position

the 8 floor connect 6 floor’s position

the 9 floor connect 7 floor’s position

the 10 floor connect 8 floor’s position



Another example: to control 1-6 floor

swipe the system card 1 time first, then swipe the 1 floor’s “Room Number Setting Card”

If your hotel have 6 floors and the the 2 floor is Gym and anyone can go to the 2 floor,

 you need to connect socket of the elevator controller to the elevator's button like followed:

the 1 floor connect the 1 floor's position(usually anyone can arrive to the 1 floor, so you can left the 1 floor's position there and don't connect.)

the 2 floor's position must be left there and don't connect.

the 3 floor connect the 3 floor's position

the 4 floor connect the 4 floor's position

the 5 floor connect the 5 floor's position

the 6 floor connect the 6 floor's position



Or you can connect like followed, but you need to choose the 3 floor as starting floor

(swipe the system card 1 time first, then swipe the 3 floor’s “Room Number Setting Card”)

the 3 floor connect 1 floor’s position

the 4 floor connect 2 floor’s position

the 5 floor connect 3 floor’s position

the 6 floor connect 4 floor’s position



Above 2 ways of connection, please note:

Because the 1 floors position and 2 floors position dont connect to the elevators button, anyone can go to the 1 floor and 2 floor even without cards.



About the time, you can issue a "Clock Setting Card" to set the time to the elevator controller(swipe system card 1 time, then "Clock Setting Card" 1 time).

When the guest cards is expired, the guest can't go to corresponding floor. But we don't suggest you set the time, because there maybe some errors about the time.

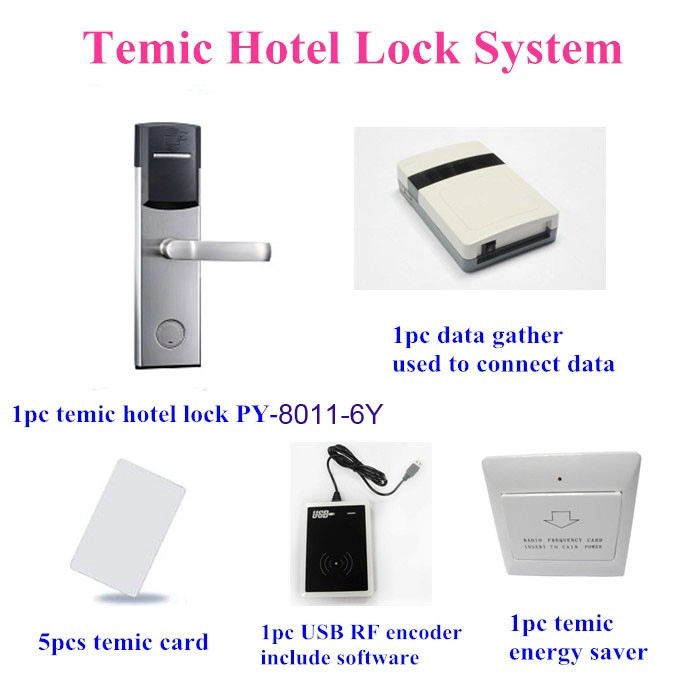

You can use the elevator control system for hotel door lock system ,

 hotel card can open the elevator.

We also have hotel access control system
