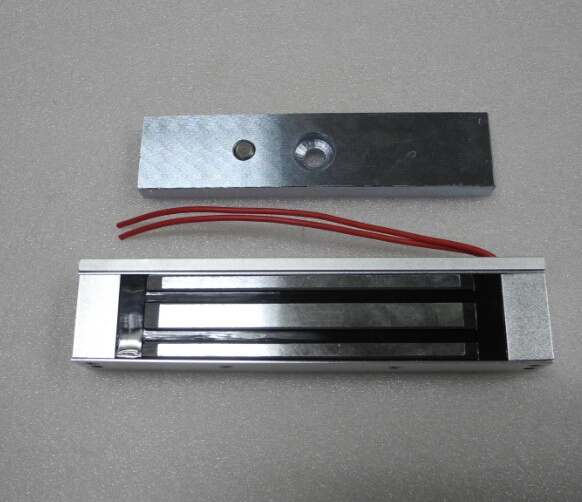

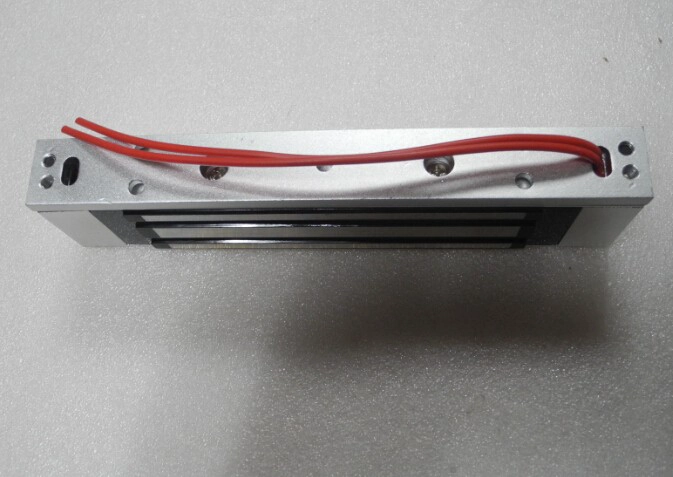

180 kilograms 350lbs Holding Force Electric Magnetic Door Lock PY-EL5-2

180 kilograms 350lbs Holding Force Electric Magnetic Door Lock PY-EL5-2

  • Dual voltage:12/24VDC+10%
  • Current:12V/300mA     24V/150mA
  • Suitable for:File Cabinet ,Display Cabinet
  • Surface Temp:≤+20°C
  • Operating Temp: 10~+55°C(14-131F)
  • Suitable for:wooden doors, glass doors, metal doors, fireproof doors
  • Suitable Humidity:0~90%(non-condensing)
180 kilograms 350lbs Holding Force Electric Magnetic Door Lock

Dual voltage:12/24VDC+10%

Current:12V/300mA     24V/150mA

Suitable for:File Cabinet ,Display Cabinet

Surface Temp:≤+20°C

Operating Temp: 10~+55°C(14-131F)

Suitable for:wooden doors, glass doors, metal doors, fireproof doors

Suitable Humidity:0~90%(non-condensing)



Product Parameter:Parameter Spec.

Place of Origin

 Guangdong, China (Mainland)

Brand Name

 Proyu

Model Number

 PY-EL5-2

Type

 magnetic lock

Lock size

170Lx35Wx26H(mm)

Holding force

180kg(350Lbs)

Dual voltage

12/24VDC+10%

Current

12V/300mA     24V/150mA

Suitable for

File Cabinet ,Display Cabinet

Surface Temp

≤+20°C

Operating Temp

 10~+55°C(14-131F)

Suitable for

wooden doors, glass doors, metal doors, fireproof doors

Suitable Humidity

0~90%(non-condensing)

Weight

1.2kg
