2 Door Controller double door controler connected with card reader PY-20002 Door Controller double door controler connected with card reader PY-20002 Door Controller double door controler connected with card reader PY-2000

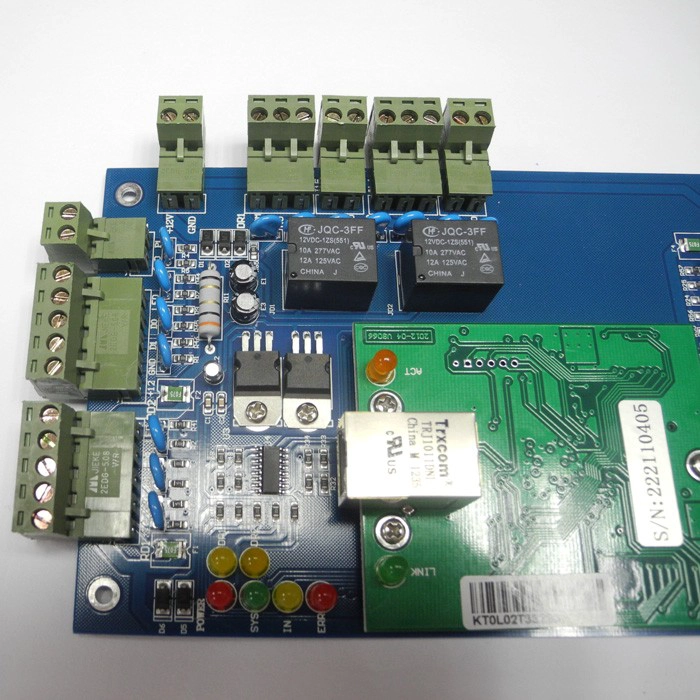

2 Door Controller double door controler connected with card reader PY-2000

  • Access Controllers provide the solution for powerful combinations of access control and alarm monitoring within off-line networks.
  • The PY-1000 is now capable to handle1 doors / 2 readers with a single controller.
  • The PY-2000 is now capable to handle 2doors / 4 readers with a single controller.
  • The PY-4000 is now capable to handle 4 doors / 4 readers with a single controller.
  • Access Controller fits any type of installations, up to 20,000 users, from single buildings to multiple sites spread over remote locations and linked via TCP/IP.
  • The user-friendly Access software programs the system within a few minutes, from a non-dedicated PC. Access Software provides numerous access control and alarm monitoring features: expiry date for clubs, automatic activation, interlock between two doors, time zones, supervision, anti-passback, activity reports...
  • Each alarm input is programmable: operating mode (NO or NC), time zones, local reflex (activation of outputs according to input status). Specific alarms are triggered according to the number of unsuccessful attempts, the time limit for door closing (door alarm), the duress code...
  • Whenever required, the data stored in the controllers is transferred to the computer and activity reports are printed. Each controller works independently and keeps its own database.
  • Installation
  • The installation is set up within a few minutes.
  • In case of power cut, the back-up battery (up to 12V- 17 A/h) ensures numerous hours of full autonomy.
  • Visual LEDS indicate the inputs, outputs and communication status.





Function Introduction



Conventional Function

offline operation; real time supervision; photo display; mass storage; flexible user privilege setup; remote unlocking; multi-user supervision; quick setting; convenient checking and query; revisable and printable report form; report form;report can be exported to excel file; card+password unlocking; alarm for long time unclosing;alarm for invalid card swiping; first card unlocking;alarm for illegal break in; unlocking at definite time; e-map,patrol, meeting,const meal etc.



Professional function

for professional users such as bank,cash house, telecom station, power supply station,prison and plice station: interface locking; intimidation alarm; integrated fire control;anti-passback and anti-tail; interlocking;multi-card unlocking; emergency double locking; in door population checking; unlocking based on internal and external validation.



all-in-one-card management system

nomal shift and multi-shifts time attendance management system; fixed ration dining management system; meeting attendance management system; online patrol management system and security alarm management system.









Parameter



Communication

TCP/IP



English Software supportable database:

SQL



Description

Control 1 door, get in and out door by swiping card, or get in by swiping card and get out door by button



Power Supply

12VDC; 4-7A



Power Consumption of Circuit Board

Less than 100mA



Input Format of Reader

Wiegand 26/34 bit (All card reader with compatible protocol)



Quantity of Readers

4 pcs



Door Controlled

2



Door opening time extending setting

1-600 Seconds(adjustable)



Max q ' ty of controller

Unlimited



Operation Temperature

-40degree ~ 70degree



Operation Humidity

10-90 % RH , No Condensation



Q ' ty of users

20,000 Users



Q ' ty of Event Buffers(offline)

100,000 Event Buffers



Power interruption protection measure

High Speed Memory, Records never lose



Max Distance from Reader to Controller

100M (suggestion distance 80M)



Max Distance between Controllers

Depend on network range




Collocations

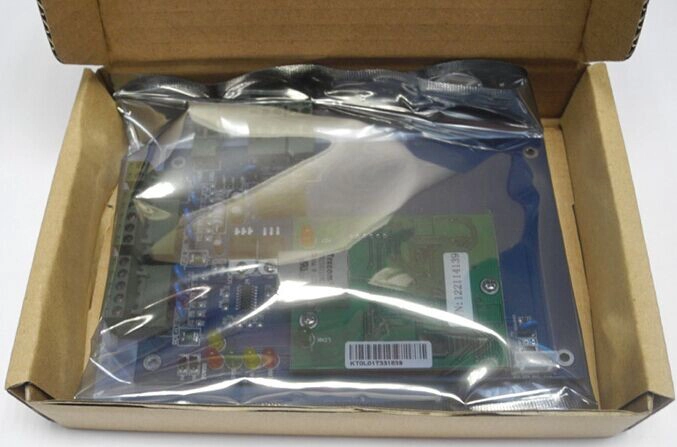

PCB board, case, power, power line, serial port communication line, software, manual, certificate, key(2pcs), carton



Alarm for long time door open, ilegal break in, intimidate

Yes



Fire and alarm linkage

If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm
