Home > Products > Access Control System > Access Controller > IE Web Browser/APP TCP/IP door.....
IE Web Browser/APP TCP/IP door access control board 4 reader 4 door controller PY-4000IE Web Browser/APP TCP/IP door access control board 4 reader 4 door controller PY-4000IE Web Browser/APP TCP/IP door access control board 4 reader 4 door controller PY-4000IE Web Browser/APP TCP/IP door access control board 4 reader 4 door controller PY-4000

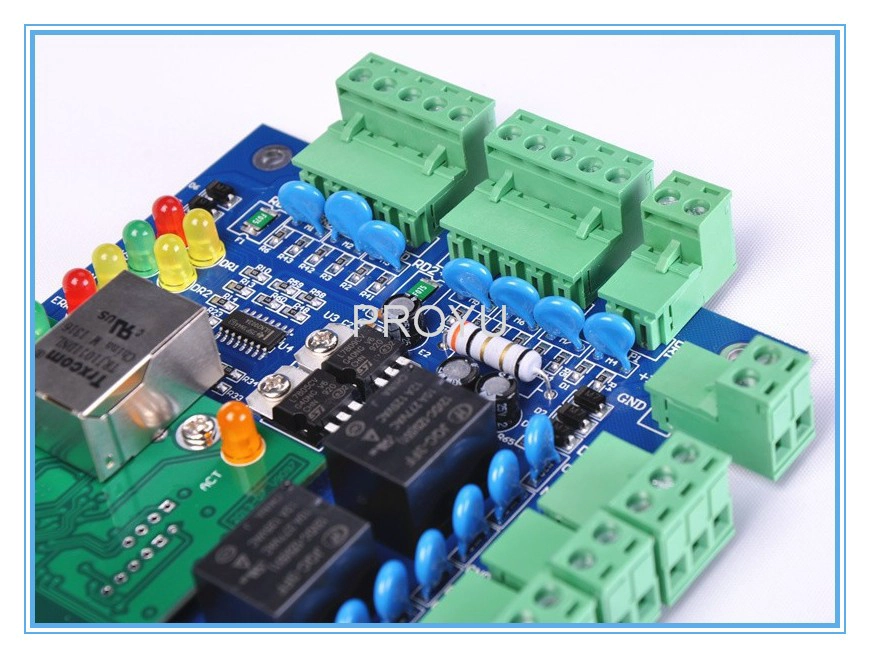

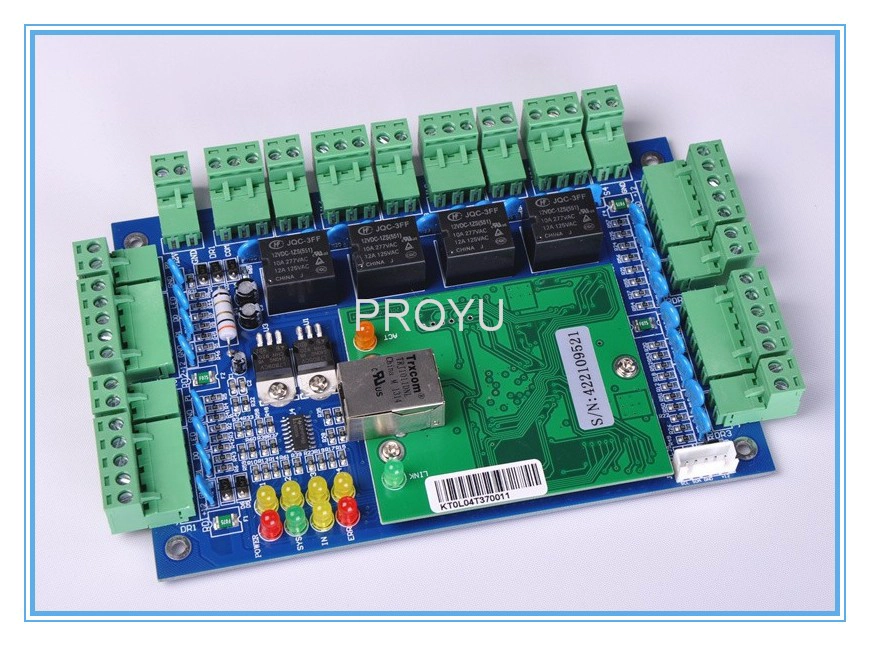

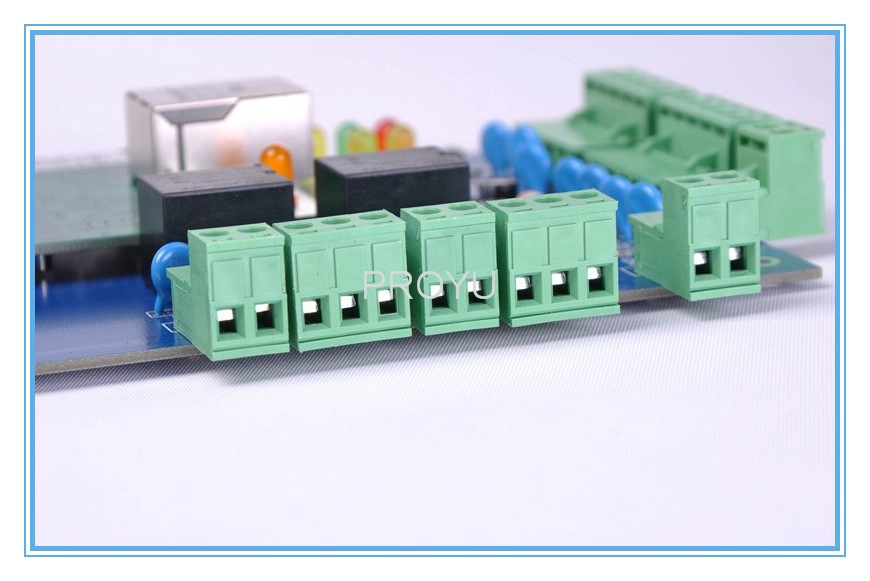

IE Web Browser/APP TCP/IP door access control board 4 reader 4 door controller PY-4000

  • 1: Door control quantity: 4;
  • 2: Reader control quantity: 4
  • 3: Comunication: TCP/IP, IE Browser, APP
  • 4: Serial product: 1 door controller, 2 door controller, 4 door controller

IE Web Browser/APP TCP/IP door access control board 4 reader 4 door controller PY-4000

Parameters:

Communication

TCP/IP, IE Browser, APP

Controlled Readers( in and out)

4PCS

Controlled door relay:

4

English Software supportable database:

SQL

Door opening time extending setting

1-600 Seconds(adjustable)

Max q ' ty of controller

Unlimited

Power Supply

12VDC; 4-7A

Power Consumption of Circuit Board

 Less than 100mA

Input Format of Reader

Wiegand 26/34 bit (All card reader with compatible protocol,such as EM, IC etc,

Operation Humidity

10-90 % RH ,No Condensation

Q ' ty of users

20,000 Users

Q ' ty of Event

Buffers(offline)  100,000 Event Buffers

Max distance between controller to the PC:

No limits

Max distance for the bus line:

Depends on Network

Max distance(Reader to controller)

100 meters, suggest within 80 meters

Max q ' ty of controller

Unlimited

The card reader, door sensor and button line:

Network lines

Controller relationships

Each  works independently and keeps its own database

Alarm input

programmable

Software

English

SDK

Available

PCB board size:

160mm * 106mm

Case Size:

273mm * 228mm * 65mm
