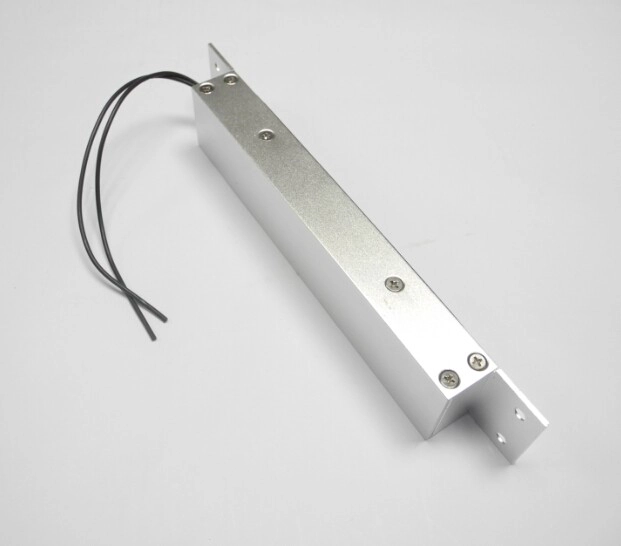

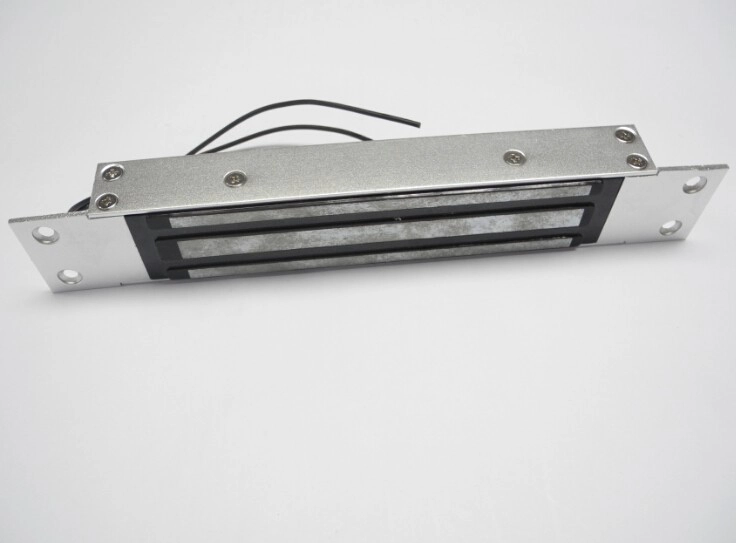

280 kilograms embedded magnetic lock PY-EL7-2

280 kilograms embedded magnetic lock PY-EL7-2

  • Holding Force: 280kg(600Lbs)
  • Voltage: 12/24VDC+10%
  • Current Draw: 12V/500mA,24V/250mA
  • Surface Temp: ≤+20°C

280 kilograms embedded magnetic lock

Features:

Dual Voltage 12 or 24 VDC(optional)
The Standard Voltage is 12VDC when Finished
MOV Provides Reverse Current Protection
Anti-Residual Magnetism Designed
High Strength Material,Anodized Aluminum Housing
Design without Mechanical Failure
Increase the holding Force,Dual Insulative Housing

Technical Specification:

Place of Origin

Guangdong, China (Mainland)

Brand Name

Proyu

Model Number

PY-EL7-2

Lock Size

L225×W38×H28

Main body

L178×W38×H25

Holding Force

280kg(600Lbs)

Voltage

12/24VDC+10%

Current Draw

12V/500mA,24V/250mA

Surface Temp

≤+20°C

Operating Temp

10~+55°C(14-131F)

Suitable Humidity

 0~90%(non-condensing)

Finishes for Shell

Anodized aluminum

Finishes for Magnetic and Armature

Zinc

Suitable for

Wooden door,Glass door,Metal door,Fireproof door
