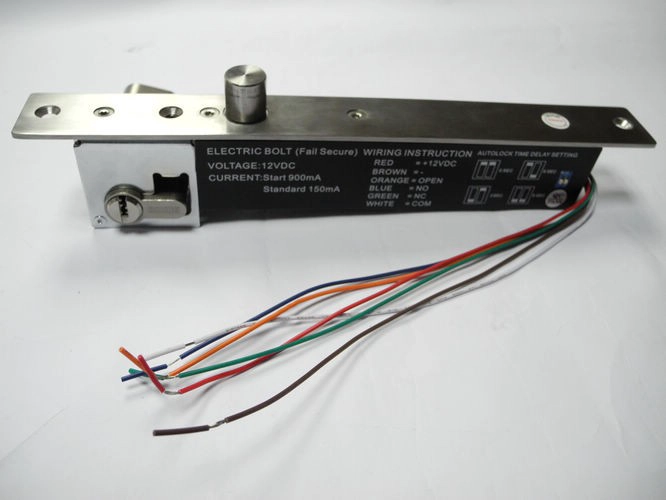

Eletric Bolt With Mort Lock Cylinder PY-EL14

Eletric Bolt With Mort Lock Cylinder PY-EL14

  • Voltage: DC12V
  • Start Current: 950mA
  • Standby Current: 150mA
  • Solid Bolt: polishing housing, 2000Kg Holding Force
  • Autolock Time Delay: 0,3,6,9sec.
  • Signal Output: Lock status Output,NO/NC/COM

Eletric Bolt With Mort Lock Cylinder

Features:

* Low Temperature, safe & Durable
* Low Power, Environmental Protection
* Special photoelectricity control,three steps current application
* Long Life  with 500000 Operations
* MOV Provides Reverse Current Protection
* Superior Strength Aluminium Alloy,Solid Stain-less Steel Bolt
* Double protection for loading current
* Auto-relock if no Action within 5 secs.
* Photoelectricity Control,Low Temperature,
  A:The  Low Current is Changed immediately;
  B:When door frame doesn`t coincide with doorleaf ,door leaf against the bolt,then the  electric bolt will start the low-power function to bring low temperature.
  C:The Photoelectricity Control Technology, prevent the machanical defect.







Technical Specifications:

Place of Origin

Guangdong, China (Mainland)

Brand Name

PROYU

Model Number

PY-EL14

Fail Secure

Unlocked when energized

Face Plate

260Lx30WX48H(mm)

Strike

100Lx25Wx3H(mm)

Bolt

16mmDIA,stainless steel 16mm throw

Voltage

DC12V

Start Current

950mA

Standby Current

150mA

Solid Bolt

Polishing housing, 2000Kg Holding Force

Suitable For

Wooden Door,Metal Door

Autolock Time Delay

0,3,6,9sec.

Signal Output

Lock status Output,NO/NC/COM

Surface Temp

Low Temperature

Induction Distance

8mm

Operating temp

-10~+55°C(14-131F)

Operating Humidity

0~90%(non-condensing)

Special Designed

Tested to 500000 operations

Face place material

Stainless Steel

Weight

1.436kg
