Home > Products > Access Control System > Electric Lock > Small Cabinet lock PY-XGO2
Small Cabinet lock PY-XGO2Small Cabinet lock PY-XGO2

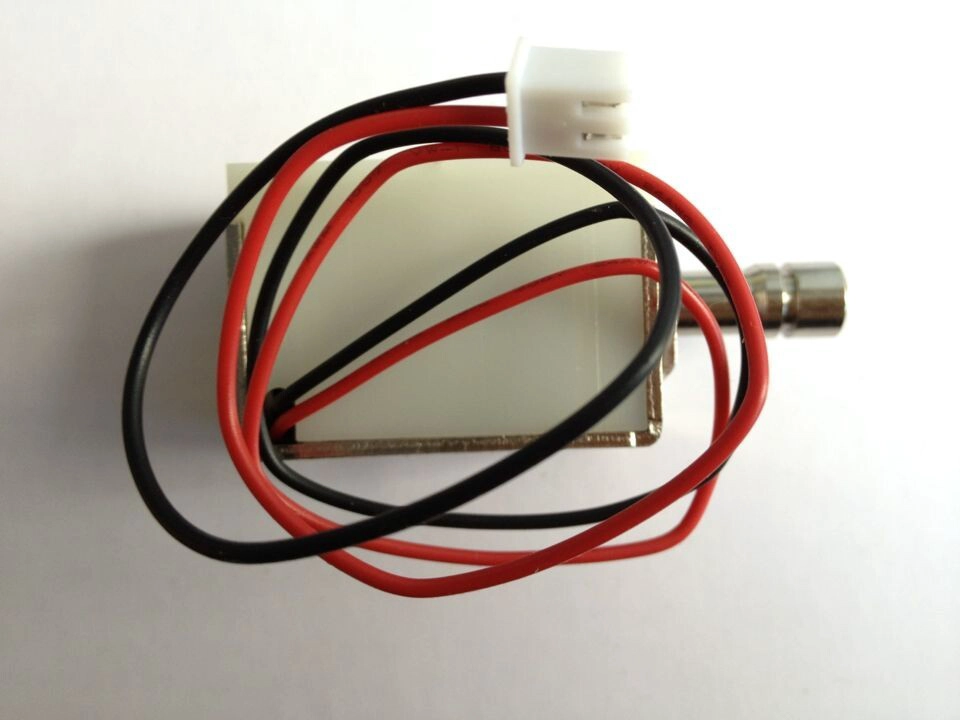

Small Cabinet lock PY-XGO2

  • Working voltage: 12VDC
  • Working current: 0.35A
  • Output power: 4.5W
  • Unlock time:1 second, Power on < 10 seconds
  • Working Mode: Power on to open
  • Length Extension of Lockpin: 6MM
  • Demension: 57Lx20Wx26Hmm
  • Surface Temp: ≤+20°C
  • Operating Temp: -40°c~+50°c
  • Suitable Humidity: 0~90%(non-comdensing)

Cabinet lock

1.The Cabinet lock has small size, simple structure and being light.

2.It can be applicable to stocker, safe, cabinet and etc.

3.It can be used with control system such as access control, button and so on.


Working voltage


Working current


Output power


Unlock time

1 second, Power on < 10 seconds

Working Mode

 Power on to open

Length Extension of Lockpin




Surface Temp


Operating Temp


Suitable Humidity
